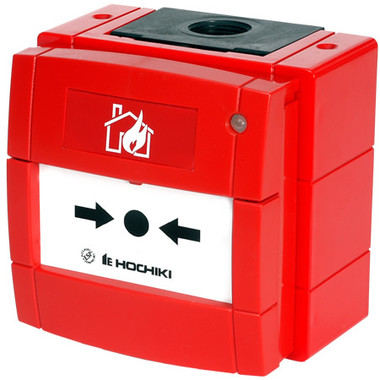

Hochiki ESP Weatherproof Addressable Call Point With Short Circuit Isolator (Red) - HCP-W(SCI)

Hochiki ESP Weatherproof Addressable Call Point With Short Circuit Isolator (Red) - HCP-W(SCI)

Hochiki HCP-W-SCI is an IP67 rated Waterproof Manual Break Glass Call Point, which is fully compatible with Hochiki's ESP analogue addressable protocol.

The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-W(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.  The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt.  A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing and an optional glass element is also available.

Features:

• Fast Response
• Integral Short-Circuit Isolator
• Bi-coloured Status LED
• Non-frangible element fitted as standard (conforms to EN54)
• Addressed with TCH-B100 Hand Held Programmer
• Surface Mounted
• IP67 rated
• LPCB approved to EN54
