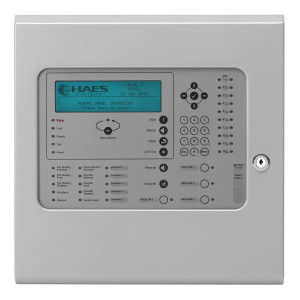

Haes Elan One Loop Control Panel Small Enclosure - HS-5101
Single Loop Addressable fire control panel
The HS-5100 control panels are supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LED’s and 4 programmable function buttons.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution graphical LCD display and tactile keypad for engineering configuration and end-user operation.
Powerful cause and effect programming coupled with ‘DynamiX’ zoning makes the panel suitable for a wide range of applications from small to large complex multi-area systems.
An extensive suite of user-friendly Windows based PC software is available for configuration, service management and logo programming.
Simply adding a network card allows the panel to communicate with any other Elan or network peripheral including; remote display units, ‘ipGateway’ or BMS/Graphical Interface.
Main Features
• Single loop analogue fire control panel
• 20 programmable zonal / 25 system LED’s with slide in labels
• Dedicated loop driver for Apollo & Hochiki protocol support
• Graphical LCD user interface and support for up to 200 fire zones allowing full EN54 compliance without additional hardware expansion
• Dual flash-based microprocessor technology with real-time clock on-board
• Dedicated USB & RS232 Serial Port for direct PC or modem connection
• Installer friendly ‘Auto-Learn’, ‘Loop Detection’ and on-board scope facility for ease of commissioning and fault finding
• Fully programmable via the on-board keypad or PC configuration tools
The graphical display can be configured to operate with virtually any language or character set and allow the installer’s logo to be applied using the ‘Logo’ application software
• Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
• Integral ‘P-Bus’ for system expansion via available option cards
• Connection to the ‘Ad-Net’ peer-to-peer network is achieved using a simple plug-in network card allowing the system to share up to 2000 zones with full cross panel reporting, control and site-wide cause and effect functionality
