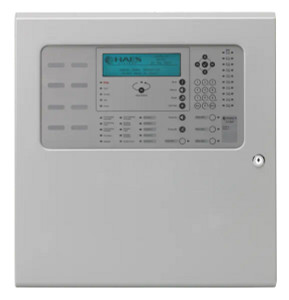

Haes Elan 1-2 Loop Control Panel Medium Enclosure (1 loop Card Fitted) - HS-5201
1-2 Loop Addressable fire control panel
The HS-5200 control panels are fully expandable from 1-2 loops and supplied with 2 on-board sounder circuits, 20 programmable zonal LED’s and 4 programmable function buttons.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution graphical LCD display and tactile keypad for engineering configuration and end-user operation.
Powerful cause and effect programming coupled with ‘DynamiX’ zoning makes the panel suitable for a wide range of applications from small to large complex multi-area systems.
An extensive suite of user-friendly Windows based PC software is available for configuration, service management and logo programming.
Simply adding a network card allows the panel to communicate with any other Elan or network peripheral including; remote display units, ‘ipGateway’ or BMS/Graphical Interface.
Main Features
• One to two loop analogue fire control panel
• 20 programmable zonal / 25 system LED’s with slide in labels
• Dedicated loop driver for Apollo & Hochiki protocol support
• Graphical LCD user interface and support for up to 200 fire zones allowing full EN54 compliance without additional hardware expansion
• Dual flash-based microprocessor technology with real-time clock on-board
• Dedicated USB & RS232 Serial Port for direct PC or modem connection
• Installer friendly ‘Auto-Learn’, ‘Loop Detection’ and on-board scope facility for ease of commissioning and fault finding
• Fully programmable via the on-board keypad or PC configuration tools
• The graphical display can be configured to operate with virtually any language or character set and allow the installer’s logo to be applied using the ‘Logo’ application software
• Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
• Integral ‘P-Bus’ for system expansion via available option cards
• Connection to the ‘Ad-Net’ peer-to-peer network is achieved using a simple plug-in network card allowing the system to share up to 2000 zones with full cross panel reporting, control and site-wide cause and effect functionality
